Bimed Hazardous Cable Glands / Double Compression Cable Glands / Orion Lead Sheathed
Double compression design provides both a flameproof seal on the inner cable sheath and an IP and cable retention seal on the outer jacket.
Displacement inner seal design
Reducing the effects of coldflow characteristics of cable
Suitable for use in Group II and III Hazardous areas.
Suitable for all types of armoured and braided cables (SWA, AWA, STA, SWB, PWA & Shielded.)
Certified to ATEX and IECEx standards with additional b approvals available (see technical for full list).
Compliant with Ex eb, Ex db, and Ex tb safety standards.
EMC Compatibility
Cap/Body Material
Brass, Brass Nickel Plated, Stainless Steel
Seal Material
Silicone
Application
Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group
Group I, Group II, Group III
Equipment Marking
EX I M2 Ex db I Mb, Ex eb I Mb
EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating
IP66, IP68 - 5 Bar, 30 min
Deluge Protection
DTS01 : 91
Temperature Range
Silicone: -60°C to +130°C
Thread Type
Metric, NPT
Cable Type
Armoured, Wire Braided, Shielded (SWA - SWB - STA - PWA - AWA)
Accessories
Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks
Sealing washer available in Metric outer threads.
Standard marking includes ATEX, IECEx and Group II,III info.
All accessories must be ordered separately.
For other special certificate marking requests, please contact us.
Some approvals do not cover all sizes, check datasheets for details.
Other thread types available upon request.
Certificate
ATEX Certificate
CESI 21 ATEX 031X
ATEX Standards
EN 60079-0, 1, 7, 31
IECEx Certificate
IECEx CES 22.0009X
IECEx Standards
IEC 60079-0, 1, 7, 31
TR CU (EAC)
No TC RU C-TR.AA87.B.01120/23
TR CU Standards
ГОСТ 31610.0; ГОСТ IEC 60079-1, 7, 31
INMETRO Certificate
DNV 23.0154 X
INMETRO Standards
ABNT NBR IEC 60079-0, 1, 7, 31
Marine Appraval
TAE000004T4
CCC Certificate
No 2024312313000604
ECASEX Certificate
22-08-20314/E22-08-046603/NB0010
Volans
Cap/Body Material
Brass, Brass Nickel Plated, Stainless Steel
Seal Material
Silicone
Application
Zone 1, Zone 21, Zone 2, Zone 22
Equipment Group
Group I, Group II, Group III
Equipment Marking
EX I M2 Ex db I Mb, Ex eb I Mb
EX II 2GD Ex db IIC Gb, Ex eb IIC Gb, Ex tb IIIC Db
Ingress Protection Rating
IP66, IP68 - 5 Bar, 30 min
Deluge Protection
DTS01 : 91
Temperature Range
Silicone: -60°C to +130°C
Thread Type
Metric, NPT
Cable Type
Armoured, Wire Braided, Shielded (SWA - SWB - STA - PWA - AWA)
Accessories
Lock nuts, Gaskets (Washers), Serrated Washers, Shrouds, Earth tags
Remarks
Sealing washer available in Metric outer threads.
Standard marking includes ATEX, IECEx and Group II,III info.
All accessories must be ordered separately.
For other special certificate marking requests, please contact us.
Some approvals do not cover all sizes, check datasheets for details.
Other thread types available upon request.

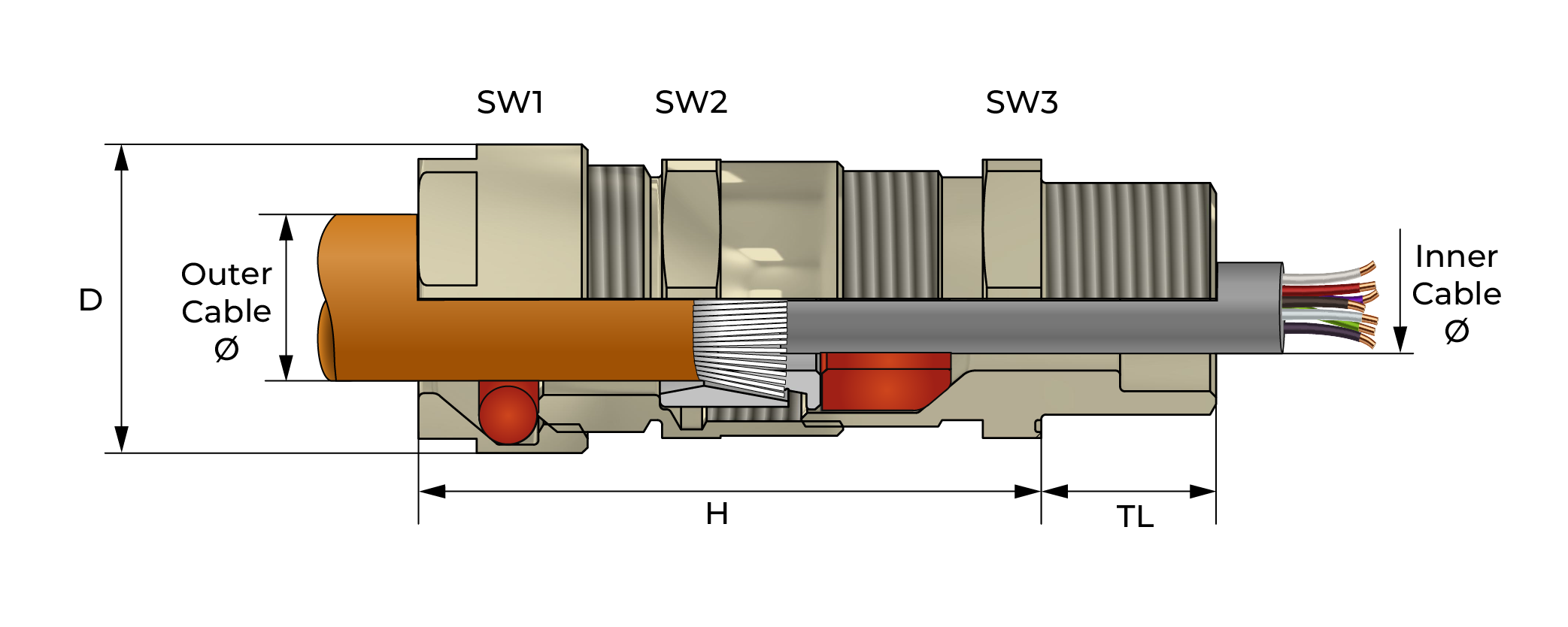

Bimed Hazardous Cable Glands（M Thread）
Double Compression Cable Glands / Volans cable gland
Bimed代理分銷：上海頤品自動化科技有限公司
M12x1,5
3,0 - 8,0
5,5 - 12,0
0,8 - 1,25
0,2 - 0,8
15
22/21/21
24
57
VOL0SM
M16x1,5
3,0 - 8,0
5,5 - 12,0
0,8 - 1,25
0,2 - 0,8
15
22/21/24
26.5
57
VOL01SM
M16x1,5
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/24
26.5
57
VOL01M
M20x1,5
3,0 - 8,0
5,5 - 12,0
0,8 - 1,25
0,2 - 0,8
15
22/21/30
33
57
VOL1XSM
M20x1,5
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/30
33
57
VOL1SM
M20x1,5
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/30
33
60
VOL1M
M25x1,5
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/36
39.8
57
VOL2XSM
M25x1,5
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/36
39.8
60
VOL2SM
M25x1,5
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/36
39.8
66
VOL2M
M32x1,5
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/46
51
60
VOL3XSM
M32x1,5
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/46
51
66
VOL3SM
M32x1,5
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/46
51
76
VOL3M
M40x1,5
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/55
62.5
66
VOL4XSM
M40x1,5
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/55
62.5
76
VOL4SM
M40x1,5
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/55
62.5
85
VOL4M
M50x1,5
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/65
74.5
76
VOL5XSM
M50x1,5
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/65
74.5
85
VOL5SM
M50x1,5
29,0 - 44,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/65
74.5
100
VOL5M
M63x1,5
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/80
91
85
VOL6XSM
M63x1,5
29,0 - 44,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/80
91
100
VOL6SM
M63x1,5
43,0 - 56,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
15
80/80/80
91
102
VOL6M
M75x1,5
29,0 - 44,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/95
106
100
VOL7XSM
M75x1,5
43,0 - 56,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
15
80/80/95
106
102
VOL7SM
M75x1,5
54,0 - 68,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
15
95/95/95
106
115
VOL7M
M80x1,5
43,0 - 56,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
20
80/80/106
118
102
VOL80XSM
M80x1,5
54,0 - 68,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
20
95/95/106
118
115
VOL80SM
M80x1,5
65,0 - 75,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/106
118
126
VOL80M
M90x1,5
54,0 - 68,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
20
95/95/106
118
115
VOL8SM
M90x1,5
65,0 - 78,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/106
118
126
VOL8M
M100x1,5
65,0 - 78,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/127
139
126
VOL9SM
M100x1,5
76,0 - 92,0
88,0 - 104,0
2,5 - 4,0
0,3 - 1,0
20
127/127/127
139
134
VOL9M
Double Compression Cable Glands / Volans cable gland
Bimed代理分銷：上海頤品自動化科技有限公司
Bimed Hazardous Cable Glands（NPT Thread）
NPT
3/8''
3,0 – 8,0
5,5 – 12,0
0,8 – 1,25
0,2 – 0,8
15
22/21/24
26.5
57
VOL01SN
NPT
3/8''
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/24
26.5
57
VOL01N
NPT
1/2''
3,0 - 8,0
5,5 - 12,0
0,8 - 1,25
0,2 - 0,8
15
22/21/30
33
57
VOL1XSN
NPT
1/2''
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/30
33
57
VOL1SN
NPT
1/2''
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/30
33
60
VOL1N
NPT
3/4''
6,0 - 12,0
9,0 - 16,0
0,8 - 1,25
0,2 - 0,8
15
24/25/36
39.8
57
VOL2XSN
NPT
3/4''
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/36
39.8
60
VOL2SN
NPT
3/4''
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/36
39.8
66
VOL2N
NPT 1''
6,0 - 14,0
12,0 - 20,0
0,8 - 1,25
0,2 - 0,8
15
30/30/46
51
60
VOL3XSN
NPT 1''
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/46
51
66
VOL3SN
NPT 1''
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/46
51
76
VOL3N
NPT 1
1/4''
11,0 - 20,0
16,0 - 26,0
1,25 - 1,6
0,2 - 0,8
15
36/36/55
62.5
66
VOL4XSN
NPT 1
1/4''
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/55
62.5
76
VOL4SN
NPT 1
1/4''
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/55
62.5
85
VOL4N
NPT 1
1/2''
16,0 - 26,5
20,0 - 33,0
1,6 - 2,0
0,2 - 0,8
15
46/46/65
74.5
76
VOL5XSN
NPT 1
1/2''
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/65
74.5
85
VOL5SN
NPT 1
1/2''
29,0 - 41,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/65
74.5
100
VOL5N
NPT 2''
22,0 - 32,5
29,0 - 41,0
1,6 - 2,0
0,2 - 0,8
15
55/55/80
91
85
VOL6XSN
NPT 2''
29,0 - 44,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/80
91
100
VOL6SN
NPT 2''
43,0 - 53,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
15
80/80/80
91
102
VOL6N
NPT 2
1/2''
29,0 - 44,0
36,0 - 52,0
1,8 - 2,5
0,2 - 1,0
15
65/65/95
106
100
VOL7XSN
NPT 2
1/2''
43,0 - 56,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
15
80/80/95
106
102
VOL7SN
NPT 2
1/2''
54,0 - 63,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
15
95/95/95
106
115
VOL7N
NPT 3''
43,0 - 56,0
50,0 - 65,0
1,8 - 2,5
0,2 - 1,0
15
80/80/106
118
102
VOL8XSN
NPT 3''
54,0 - 68,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
15
95/95/106
118
115
VOL8SN
NPT 3''
65,0 - 78,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/106
118
126
VOL8N
NPT 3
1/2''
54,0 - 68,0
61,0 - 78,0
1,8 - 2,5
0,2 - 1,0
15
95/95/106
118
115
VOL9SN
NPT 3
1/2''
65,0 - 78,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/106
118
126
VOL9N
NPT 4''
65,0 - 78,0
75,0 - 89,0
2,0 - 3,5
0,3 - 1,0
20
106/106/127
139
126
VOL10SN
NPT 4''
76,0 - 92,0
88,0 - 104,0
2,5 - 4,0
0,3 - 1,0
20
127/127/127
139
134
VOL10N
